Heat Tracing cable (Constant Wattage Heating Cable)

Heat Tracing cable (Constant Wattage Heating Cable) Specification

Connector Type
PTFE insulated Bare Copper Cores

Conductor Type
Nickel Plated Copper

No Of Core
Two Flat Cores

Cable Length
According to Customer need

Temperature
200 - 265 Celsius (oC)

Product Type
Heat Tracing Cable

Material
PTFE cores - FEP/SS final jacket

Function
Heat Tracing for industrial purpose

Usage
Maintaining temperature for pipelines, defrosting of mechanical parts and many more.

Rated Voltage
230 Volt (V)

Cable Capacity
2000 Watt (w)

Insulation Material
PTFE cores - FEP/SS final jacket

Conductor Material
Nickel Plated Copper

Size
7.5 X 5.25 M.M.

Color
According to Customer need

Diameter
7.5 X 5.25 M.M. Millimeter (mm)

Application
1. Prevents freezing and maintains process temperatures. 2. Prevents pipe freezing in cold climates. 3. Food & Pharmaceutical Plants Ensures hygienic and controlled heating.

Heat Tracing cable (Constant Wattage Heating Cable) Trade Information

Minimum Order Quantity
100 Meters

FOB Port
EXW

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Meters Per Week

Delivery Time
7 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
According to Customer need

Main Export Market(s)
North America, Eastern Europe, Western Europe

Main Domestic Market
All India

Certifications
LCSO, ISO 9001:2015

About Heat Tracing cable (Constant Wattage Heating Cable)

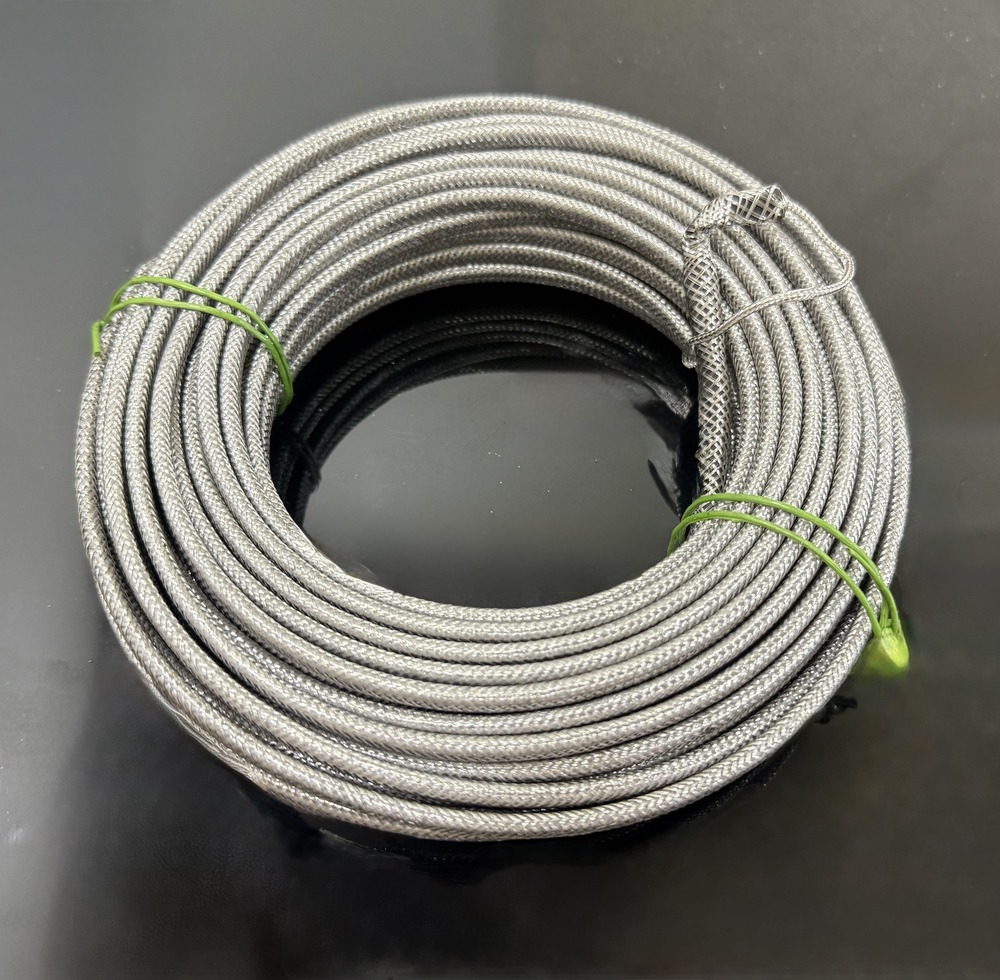

SS Braided & FEP Insulated Heat Tracing Cable (Cut-to-Length)

SS braided and FEP insulated heat tracing cables are designed for high-temperature and corrosive environments. The FEP insulation provides excellent chemical resistance and thermal stability, while the stainless steel (SS) braid enhances mechanical protection and EMI shielding. These cables offer precise, reliable heat tracing and can be cut to length for flexible installation.

Applications:
1. Industrial Pipelines Prevents freezing and maintains process temperatures.
2. Chemical & Oil Refineries Resistant to harsh chemicals and extreme heat.
3. Food & Pharmaceutical Plants Ensures hygienic and controlled heating.
4. Water & Waste Treatment Prevents pipe freezing in cold climates.
5. Aerospace & Defence Used in high-temp and critical systems.
